Electro Optical Pod with Positional Accuracy ≤30m Extended Range ≥1.2km and Angular Position Accuracy ≤0.3°
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
SKYPE: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 평균 전력 | consumption≤12W, maximum≤20W | 최대 범위 | ≥1.2km |
|---|---|---|---|
| 레이저 범위작업 | 30~2000m | 작동 온도 | -20 ℃～+60 ℃～ |
| 크기 | 130mm×120mm×180mm | 정확도를 정렬시키기 | ≤2m |
| 각위치 정확도 | ≤0.3' | 전압 | 12V |
| 강조하다 | Positional Accuracy ≤30m Electro Optical Pod,Extended Range ≥1.2km Optical Surveillance Pod,Angular Position Accuracy ≤0.3° Targeting Pod |
||
제품 설명

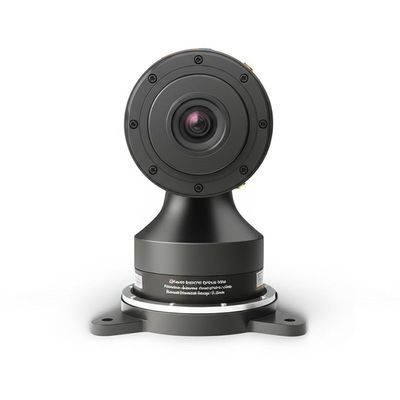

Accurate Electro Optical Pod with Positional Accuracy ≤30m 300m and Extended Range ≥1.2km
Product Overview
The Electro Optical Pod is a cutting-edge surveillance and targeting system offering exceptional precision and performance for various mission requirements. With its extended operational range and high accuracy, this system provides reliable intelligence gathering and target engagement capabilities.
Key Features
- Extended operational range: ≥1.2km
- High angular position accuracy: ≤0.3°
- Compact dimensions: 130mm × 120mm × 180mm
- Low power consumption: ≤12W average, ≤20W maximum
- Wide heading range: +90° to -90°
- Versatile power interface: 14~28V
- High-performance laser: ≥25mJ energy
Technical Specifications
| Parameter | Specification |
|---|---|
| Weight | ≤16000g |
| Laser Energy | ≥25mJ |
| IR Type | Uncooled LWIR |
| Ranging Accuracy | ≤2m |
| Angular Position Accuracy | ≤0.3° |
| Heading Range | +90° to -90° |
| Roll Range | -30° to +30° |
| Power Consumption | Average ≤12W, Maximum ≤20W |
Applications
This advanced electro-optical system is ideal for:
- Military surveillance and reconnaissance
- Border security operations
- Search and rescue missions
- Law enforcement surveillance
- Target acquisition and tracking
Customization Options
The Electro Optical Pod can be customized to meet specific operational requirements, including:
- Angular position accuracy: ≤0.3°
- Roll range: -30° to +30°
- Maximum range: ≥1.2km
- Laser energy: ≥25mJ
- Ranging accuracy: ≤2m
Support & Services
- On-site installation and training
- 24/7 technical support
- Software updates and maintenance
- Repair and replacement services
- Performance optimization
Package Contents
- Electro Optical Pod unit
- User manual
- Power adapter
- Mounting hardware
Shipping Information
Standard delivery with estimated arrival in 5-7 business days. Shipping costs calculated at checkout.
