FW-ED15 Thermal Sight 640x512 Resolution 12µm UFPA Sensor
| Place of Origin | China |
|---|---|
| 브랜드 이름 | Forward |
| Model Number | FW-ED15 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
SKYPE: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| NETD | ≤20mk | Pixel pitch | 12µm |
|---|---|---|---|
| Resolution | 640×512 | Spectral range | 8-14µm |
| Frame rate | 50Hz | Image Sensor | UFPA (VOx) |
| 강조하다 | FW-ED15 thermal imaging sight,640x512 infrared detector,thermal monocular with high resolution |
||
제품 설명

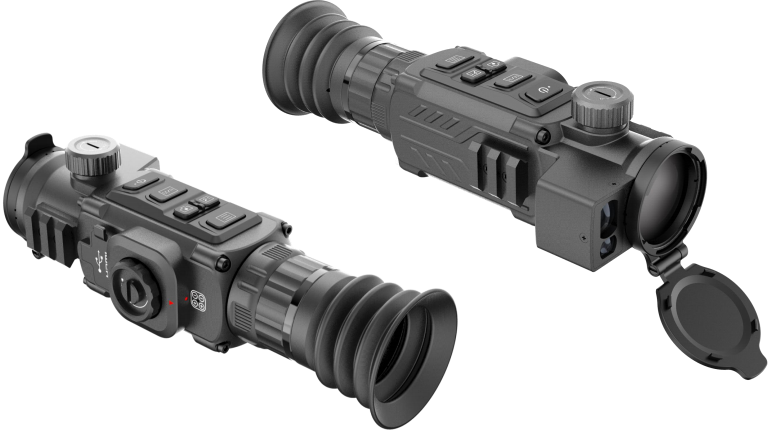

FW-ED15 Thermal Image Sight 640 x 512 Resolution Infrared Detector
Key Specifications
| Attribute | Value |
|---|---|
| NETD | ≤20mk |
| Pixel pitch | 12µm |
| Resolution | 640×512 |
| Spectral range | 8-14µm |
| Frame rate | 50Hz |
| Image Sensor | UFPA (VOx) |
Product Overview
The FW-ED15 Thermal Image Sight features a 640 x 512 resolution infrared detector with high thermal sensitivity for exceptional detail recognition in challenging weather conditions. This advanced scope incorporates AI target recognition, target tracking, and intelligent ballistic calculation capabilities, making it ideal for hiking, hunting, and search and rescue operations.
Key Features
- 12µm uncooled infrared detector with NETD≤20mk
- 1024×768 resolution with 0.39 inch OLED display
- AI-based automatic target recognition
- Stable and reliable automatic target tracking
- Multiple pseudo color options for different scenarios
- Intelligent ballistic calculation function
- Compact and lightweight design
Applications
- Animal observation
- Outdoor adventure
- Security and law enforcement
- Emergency search and rescue
Components and Controls
- Objective lens
- Laser rangefinder
- Focus knob
- Power button
- Mode/Return button
- Capture/Left button
- Zoom/Right button
- Menu/Confirm button
- Diopter adjustment ring
- Ocular lens
Technical Specifications
Image Sensor: UFPA(VOx)
Resolution: 640×512
Pixel pitch: 12μm
NETD: ≤20mk
Spectral range: 8-14μm
FOV: 12.5°×10.0°
Focal length/Aperture: 35mm; F1.0
Focus Mode: Focus Knob
Eye relief/Exit pupil: 40mm/6mm
Diopter: +5D to -5D
Detection Range: 2.4km (Human; 2pixels)
Recognition Range: 410m (Human; 12pixels)
Screen: AMOLED, 0.39 inch
Brightness Adjustment: Supported
Color Palette: Hot/Fusion/Golden Hot etc.
Digital Zoom: 1×; 2×; 4×
