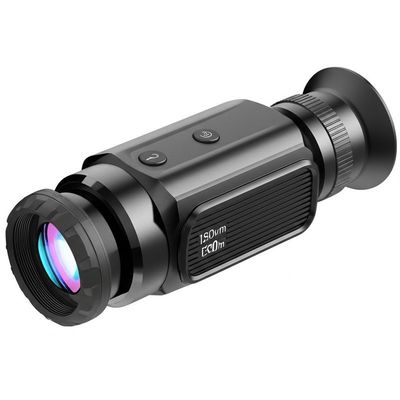

Long Range 1500m Thermal Imaging Monocular with 5V Operating Voltage and 50fps Frame Rate for High-Performance Surveillance
| 브랜드 이름 | Infrared Thermal Imager |
|---|---|
| Model Number | FW-ZC |
| Minimum Order Quantity | 1 |
| Delivery Time | 2-3 Weeks |
| Supply Ability | 1000/year |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
SKYPE: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 발각 | 1500m | 초점 거리 | 25mm |
|---|---|---|---|
| 픽셀 피치 | 12µm | 저장 온도 | -50°C ~ 70°C |
| 생산 능력 | 한 달에 300 세트 | 프레임 속도 | 50fps |
| 작동 전압 | 5V | 정확성 | ≥ 98% |
| 강조하다 | Long Range 1500m Thermal Imaging Monocular,5V Operating Voltage Thermal Monocular,50fps Frame Rate Infrared Thermal Imager |
||
제품 설명
Long Range Thermal Imaging Monocular with 12µm Pixel Pitch and 1500m Detection
Product Overview
This high-performance thermal imaging monocular features a state-of-the-art vanadium oxide uncooled detector with 1500m detection range. Operating at 5V, it delivers exceptional image quality with efficient power consumption, making it ideal for surveillance, hunting, wildlife observation, and professional applications.
Key Features
- 1500m long-range detection capability
- 12µm pixel pitch for high-resolution imaging
- Vanadium oxide uncooled detector technology
- 50fps high frame rate for real-time imaging
- IP67 waterproof rating for all-weather operation
- Compact 20mm lens design
- 15-hour continuous working time
Technical Specifications
| LCD Resolution | 1280x960 |
| Refresh Rate | 30Hz |
| Frame Rate | 50fps |
| Lens | 20MM |
| Working Time | 15 Hours |
| Detector Type | Uncooled (vanadium oxide) |
| Accuracy | ≥ 98% |
| Focal Distance | 25mm |
| Production Capacity | 300 Sets Per Month |
Applications
The FW-ZC Thermal Imaging Monocular is designed for professional and recreational use in various scenarios:
- Surveillance and security operations
- Search and rescue missions
- Wildlife observation and hunting
- Industrial inspections
- Military and law enforcement
- Outdoor adventure activities
Customization Options
| Brand Name | Infrared Thermal Imager |
| Model Number | FW-ZC |
| Place of Origin | China |
| Minimum Order Quantity | 1 |
| Delivery Time | 2-3 Weeks |
| Supply Ability | 1000/year |
| Waterproof Rating | IP67 Dust/Water Proof |
Support & Services
- Technical troubleshooting assistance
- Repair and maintenance services
- Firmware updates and software support
- Comprehensive product warranty
- Detailed user manuals and guides
- Customer training resources
Packaging & Shipping
Each thermal imaging monocular is securely packaged in a protective cardboard box to ensure safe delivery. We work with reliable shipping partners to provide timely delivery with tracking information for all orders.
